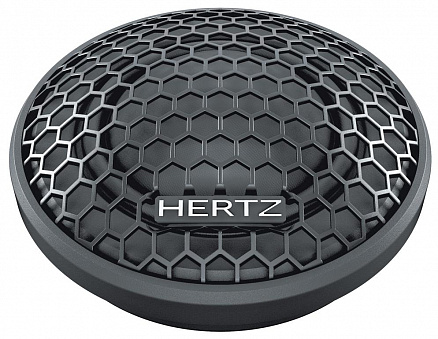

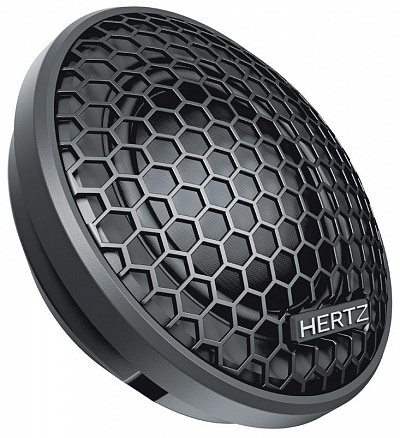

ВЧ-динамики Hertz MP 28.3 PRO Set Tweeter
|Size mm (in.)||35 (1.38)|
|Power Handling - Peak W||180|
|Power Handling - Continuous W||(Hi-Pass filtered @ 1,8 kHz - 12dB Oct.)|
|Frequency response Hz||1k ÷ 25k|
|Sensitivity dB SPL||91|
|Voice coil Ø mm (in.)||28 (1.1)|

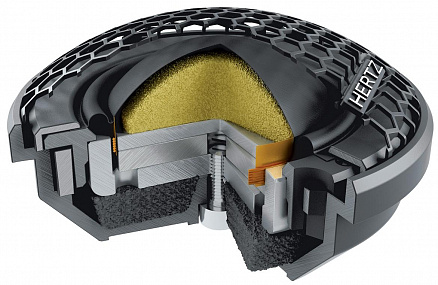

1. Tetolon Fiber dome optimized with FEA simulations, for excellent dynamics and angle dispersion.
2. Double Neodymium magnet optimized with FEA simulations, for maximum field symmetry and exceptional transfer efficiency.
3. Extended rear chamber filled with natural fibre non-woven sound-absorption material, for better damping and more natural acoustic emission.
4. Massive 28 mm CCAW (Copper Clad Aluminium Wire) ferrofluid-cooled mobile voice coil for outstanding power handling.
5. 900Hz FS to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
6. Faceplate featuring FEM (Finite Element Modeling) optimized geometry, for high linearity in off-axis installations.
7. Wide array of installation accessories, for an easy OEM integration.
8. Separate ultra-compact crossover to the benefit of simplicity and flexibility of installation featuring level adjustment switch (0, -2dB).
