Усилитель автомобильный Hertz DP 1.500 D-Class Mono Amplifier

• Количество каналов: один
• Класс: D
• Номинальная мощность на канал при 4Ом: 251-500Вт
• Номинальная мощность на канал при 2Ом: 250-500Вт
• Особенности: вход высокого уровня, сабсоник
• Гарантия: 12 месяцев
• Бренд: Hertz

Общие характеристики

Channels	1
Amp class	D
POWER SUPPLY
Nominal power supply voltage (fuse)	11 ÷ 15 VDC (1 x 30 A)
Operating power supply voltage	6.5 ÷ 17.5 VDC
Idling current	1 A
Standby current draw	50 uA
Consumption, MIN load impedance (Max Musical Power)	21 A
Remote IN	4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)	1.5 VDC
Efficiency	86%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power	0.2%
Damping factor @ 1 kHz, 1W	180
Bandwidth @ -3 dB	10Hz ÷ 500Hz
S/N ratio (A-weighted @ 1 V Input)	99 dBA
Minimum load impedance
@ 1 Ch:	2 Ω
Adjustable Crossovers	yes

Мощность

Output power (RMS) @ 1% THD:
1Ch @ 4Ω	280 W x 1
1Ch @ 2Ω	500 W x 1
Output Power (RMS) @ 14.4 VDC, THD 10%:
1Ch @ 4Ω	350 W x 1
1Ch @ 2Ω	590 W x 1
Total Power	590 W

ВХОДЫ / ФИЛЬТРЫ

Inputs	Pre-In / Speaker-In
Pre Out	Full Range
Pre-In sensitivity	0.32 ÷ 8 VRMS
Speaker-In sensitivity	1.6 ÷ 40 VRMS
Lo-Pass	OFF / 50÷ 250Hz 24dB/Oct.
Subsonic	OFF / 25 Hz @ 24 dB/Oct.
Phase	0 / 180°
Bass Boost 50Hz	0 ÷ 9 dB
SUB Remote Volume Control HRC 02	-20 ÷ 6 dB

Габариты / масса

Dimension	mm	in
A	190	7.48
B	152	5.98
C	190	7.48
D	166	6.53
E	50	1.96
Weight	Kg	lbs
	1.62	3.57

Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.

Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

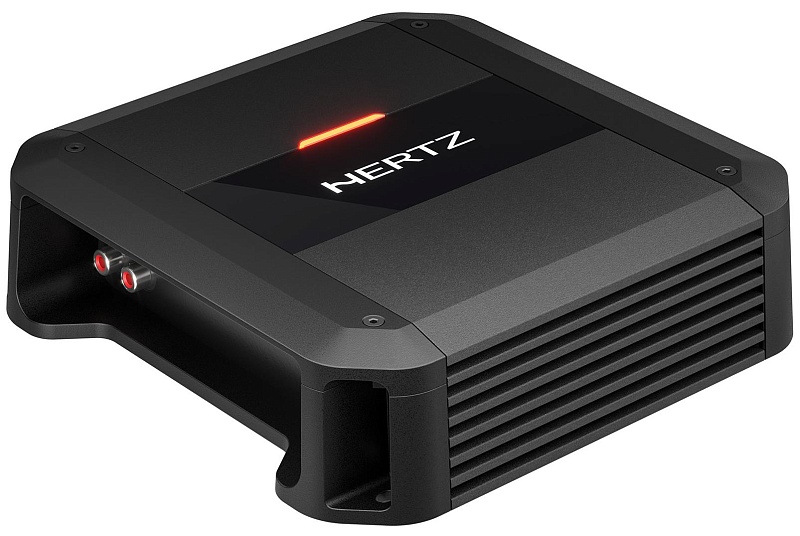

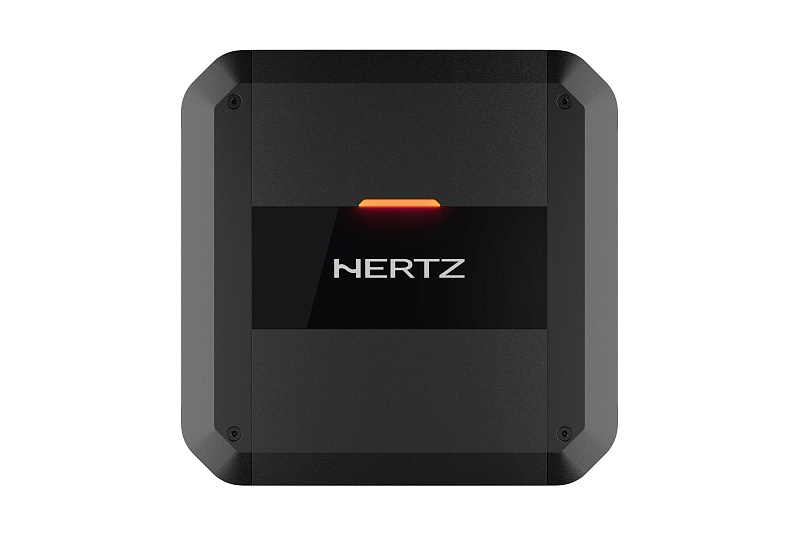

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 9 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

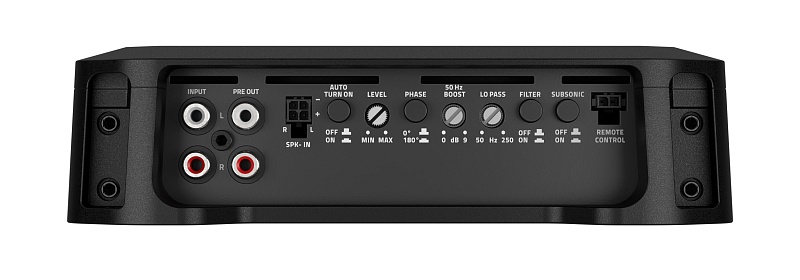

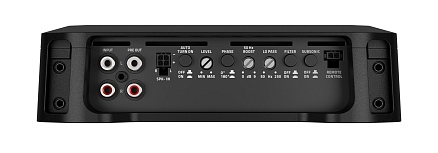

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.
